Basic size

Expanded Size
L5900mm*W2500mm*H2540mm
Internal Dimension
L5730mm*W2380mm*H2410mm

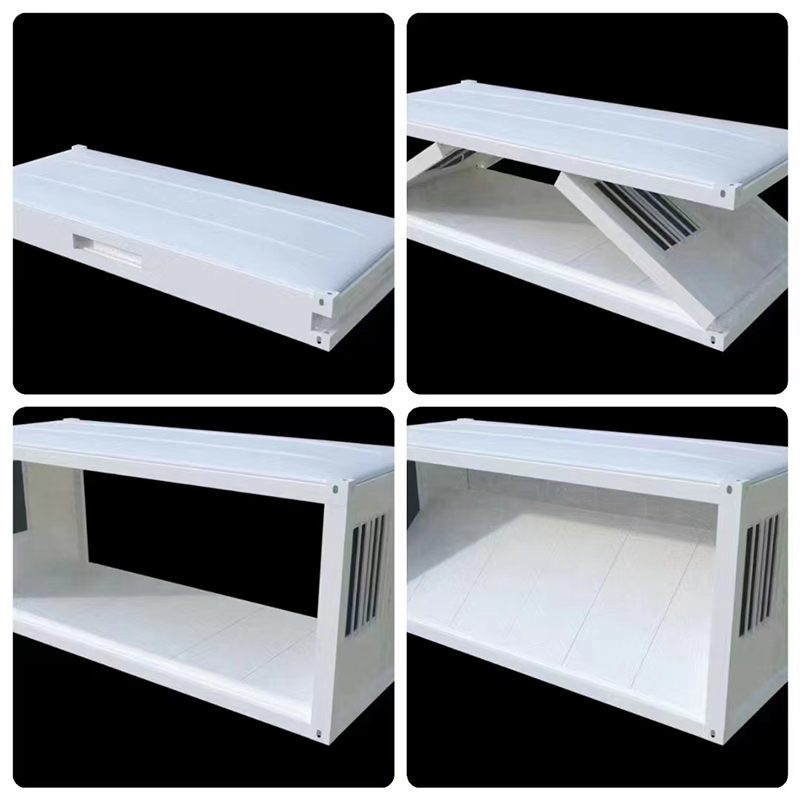

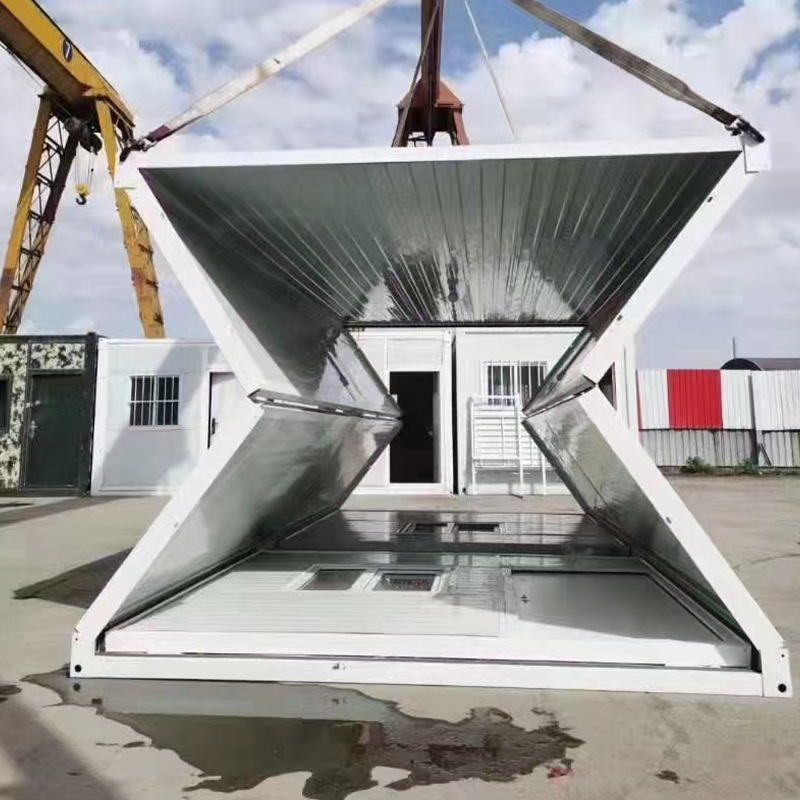

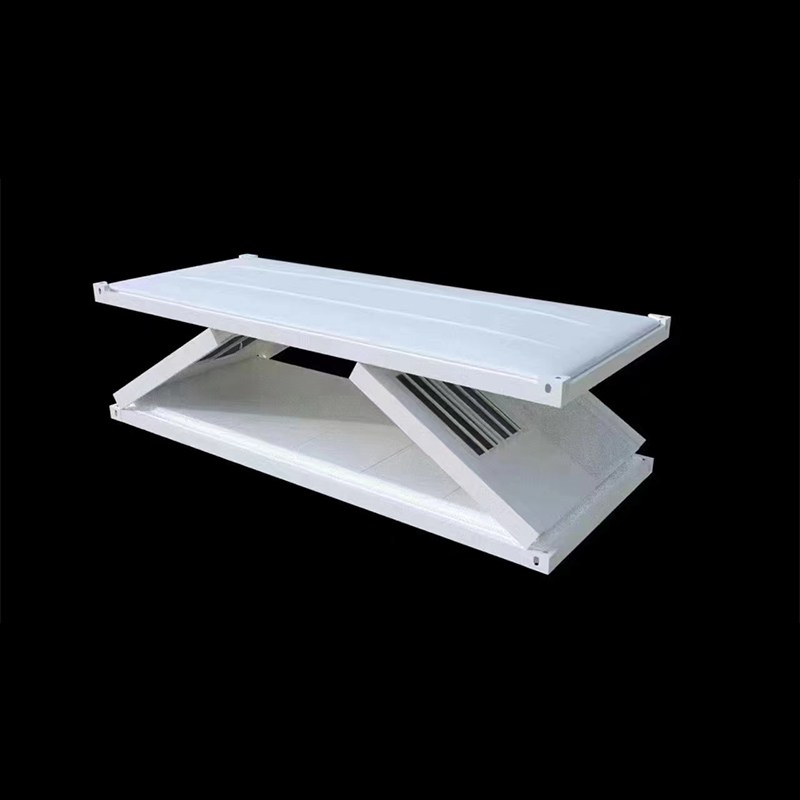

Folding Size
L5900mm*W2500mm*H340(-5)mm

Name

Size

Thicknesses/mm

Properties/Materials

Bottom frame sub-purlin

Galvanized square tube 40*40*5.9M

1.3

Q235

Bottom Purlin

Galvanized square tube 40*40*2.36

1.3

Q235

Bottom longitudinal beam

Galvanized square tube 60*140*5.9 m

1.5

Q235

Side fan main beam 2

Shaped P-tube 40*55*5.9m

1.3

Q235

Flooring

2810*1180

15

Magnesium glass fireproof flooring

Side fan main beam 1

Galvanized sub-button channel*5.9M

1.5

Q235

Side Fan Column

Galvanized square tube 30*50*1.18

1.3

Q235

Top frame main beam

Shaped P-tube 60*80*5.9m

1.3

Q235

Roof plate

Galvanized color coated coil*5.9m

0.35

Q235

Top purlin

Galvanized square tube 30*50*2.36m

1.3

Q235

Internal ceiling panels

v200 ceiling panel*2350

0.25

Galvanized color coated sheets

Top frame sub-purlin

Shaped P-tube 70*80*2.36m

1.5

Q235

Front and back wall guards

1160*105

2

Q235 Kaiping steel plate

Hanger plate

165*105

4

Q235 Kaiping steel plate

Front and back wall framing

Galvanized square tube 40*80*2.45m

1.2

Q235

Doorway frames

Galvanized buckle channel 40*70*2.45m

1.2

Q235

Lighting Line

              1.5mm² national standard soft copper wire

Socket line

              2.5mm² national standard soft copper wire

Earth (wire)

              1.5mm² national standard soft copper wire

Light

Strip light

21W

Sockets

International 3-hole 10A*1pc, 16A*1pc

10A*2pc/16A*1pc

Switchgear

Switchgear

10A

Door & window

Door

W970*H1970 Steel Security Door

Window

Single-glazed sliding plastic steel window

Plastic

(pvc)

Insulation configuration

Air Switches

32A

Electric fusebox

front and back wall

65mm rock wool purification board, color board double-sided 0.22mm,
Rock wool 50KG

0.22

Auxiliary ingredients

6 meters of side

50mm rock wool purification board, color board double-sided 0.2mm,
Rock wool 50KG

0.2

Roofing

75mm glass wool roll, 14KG

D-type adhesive tape

8mm*6mm
