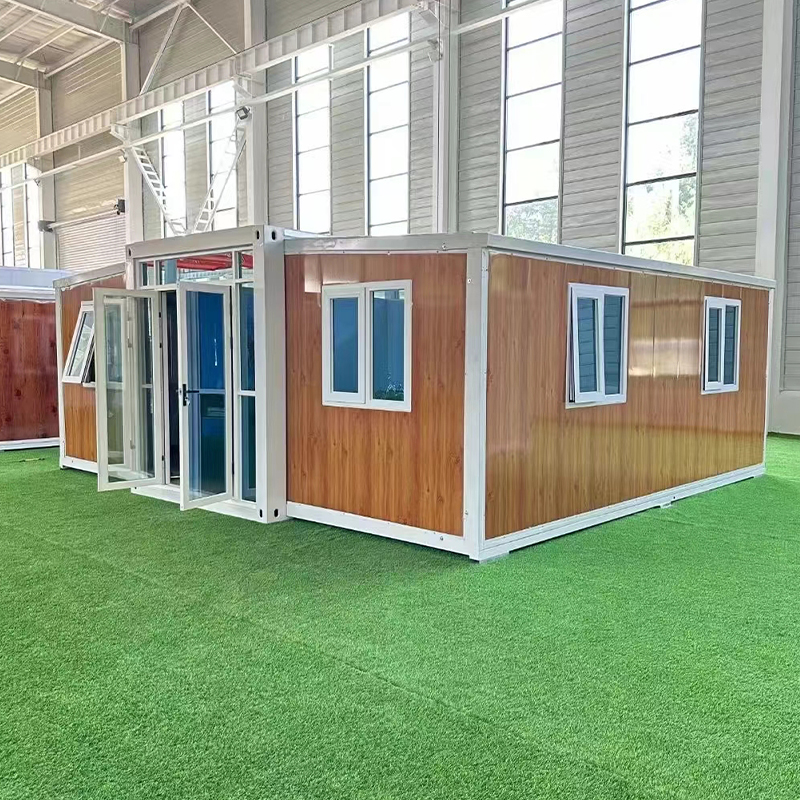

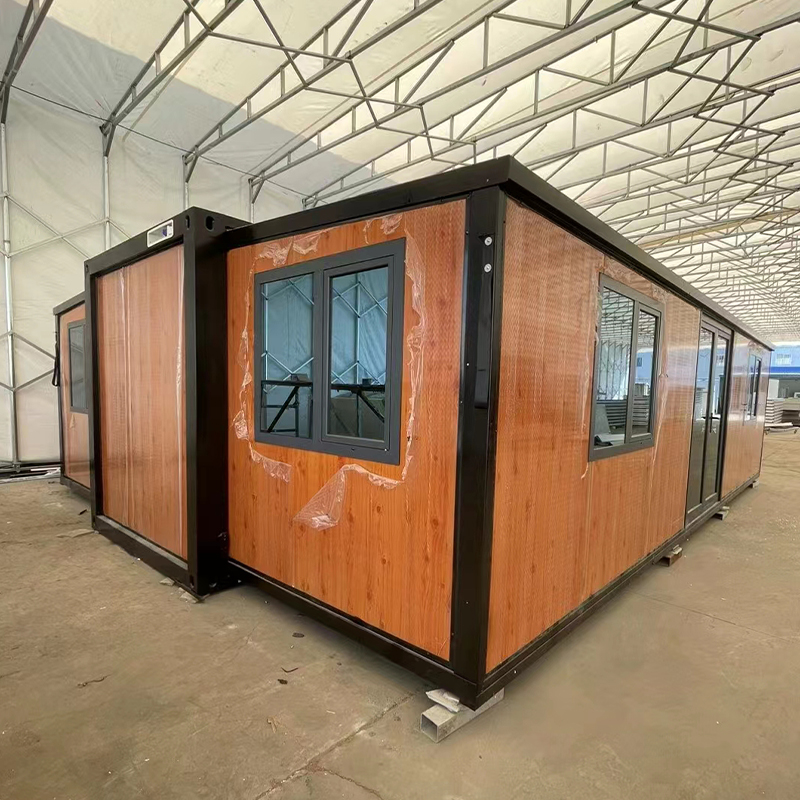

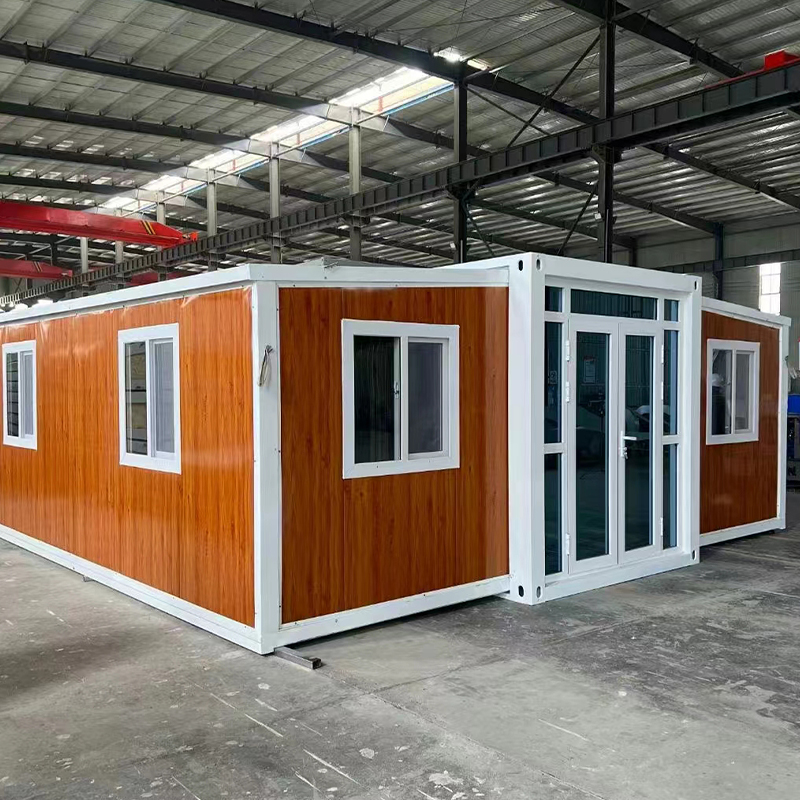

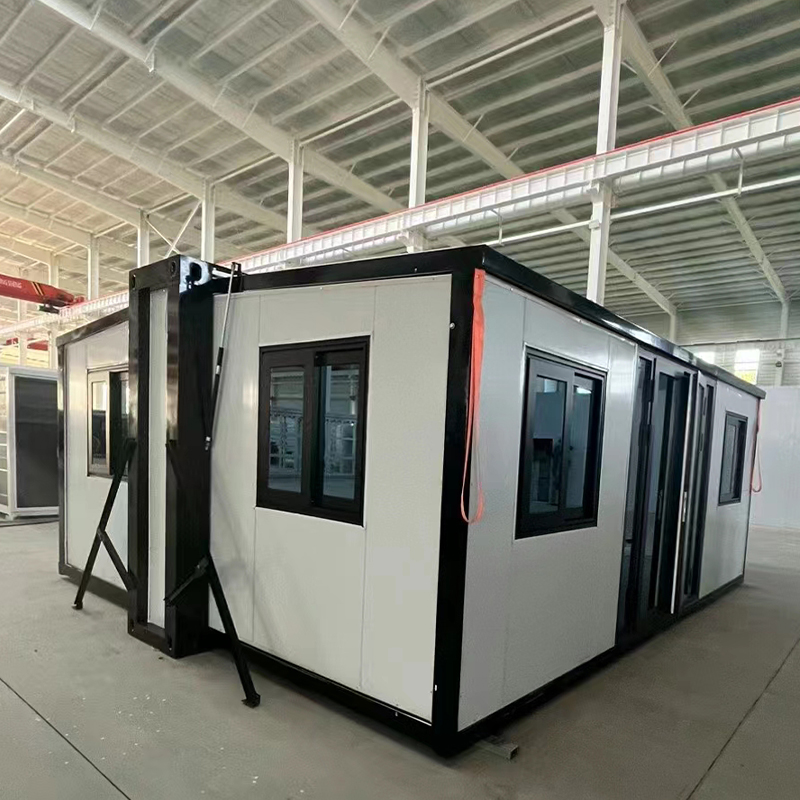

Basic Information

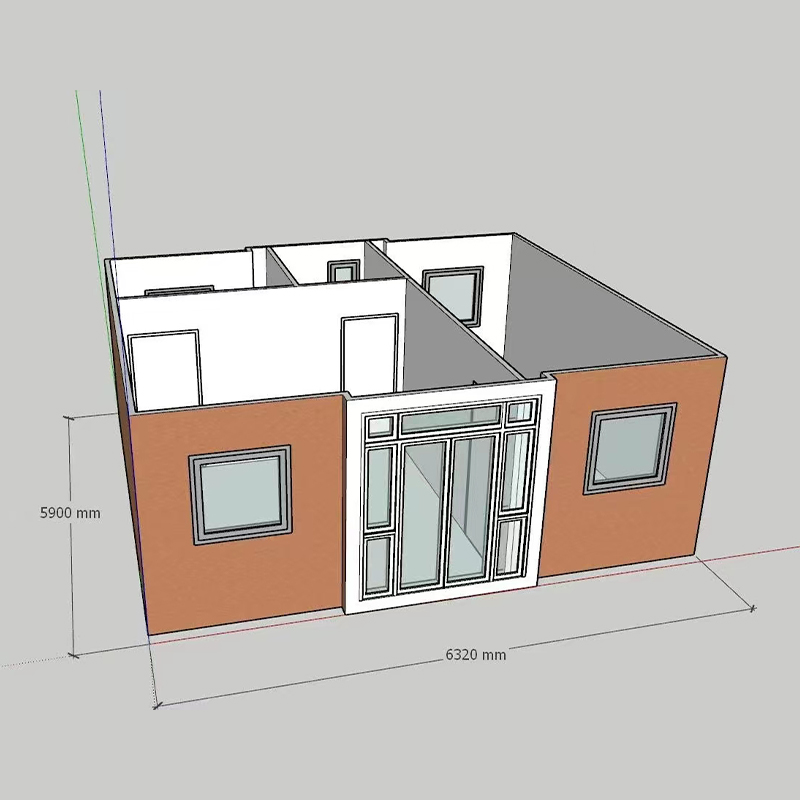

Expanded Size（mm）L*W*H

L2950*W6300*H2480

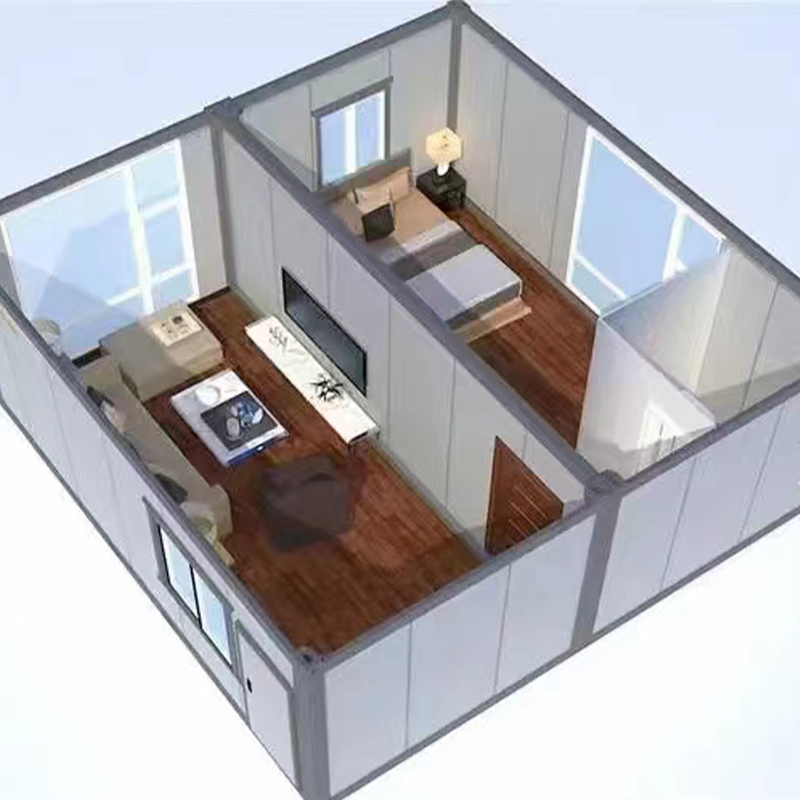

Interior space（mm）L*W*H

L2380*W6140*H2240

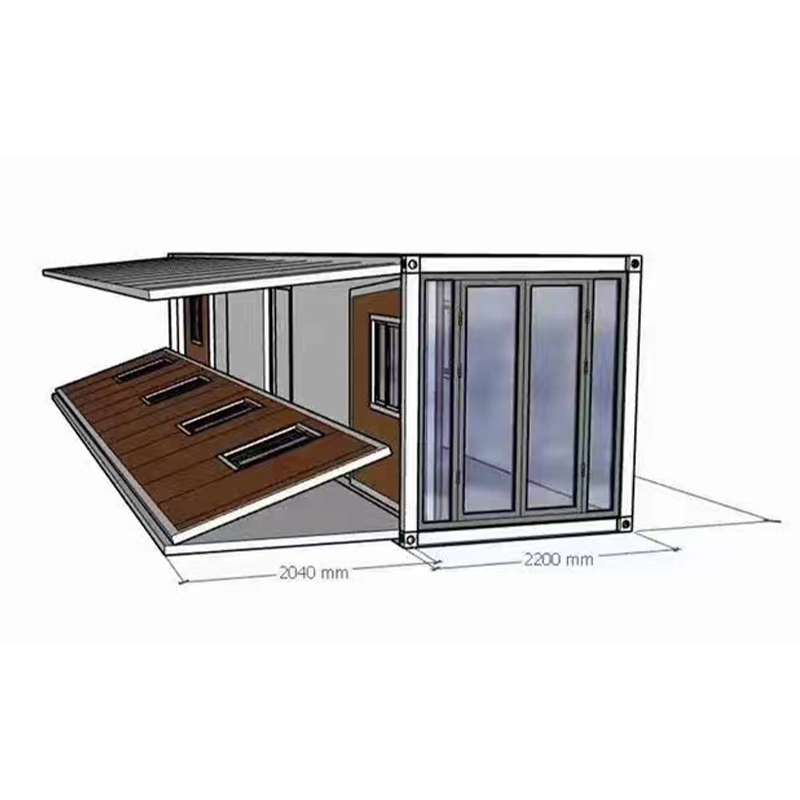

Folded Size（mm）L*W*H

L2950*W2200*H2480

Weights（KG）

1200

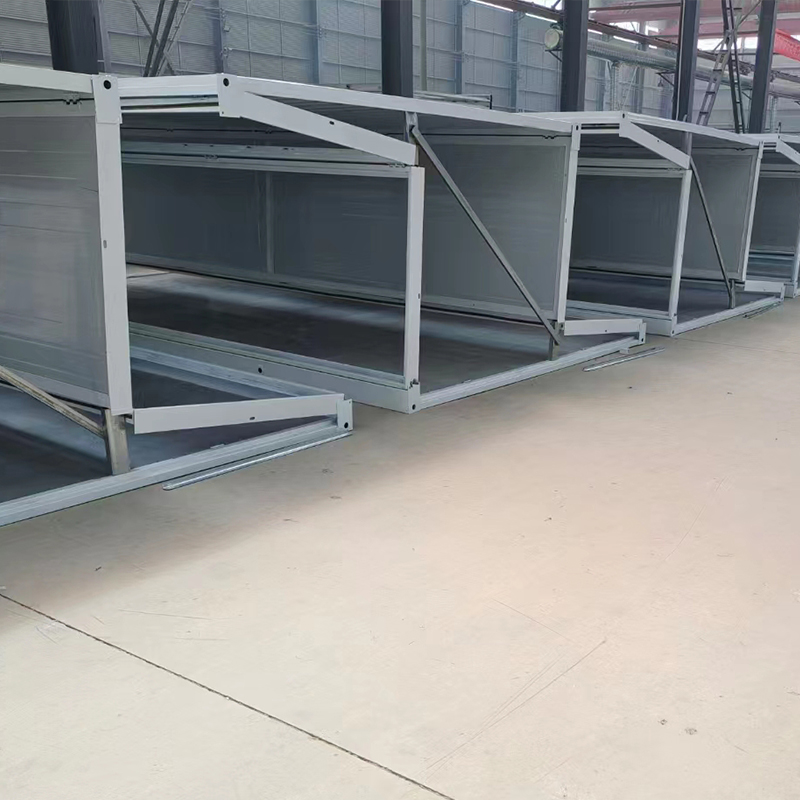

Framework structure

Main beam

Galvanized square tube 80*100*2.5MM    Q235

Column

Galvanized square tube 150*150*2.5MM   Q235

Subframe

Galvanized square tube 40*60*1.5MM     Q235

Box Hanger Head

Galvanized 150*150**4MM   Q235

Hinges

Galvanized thickened hinge Q235

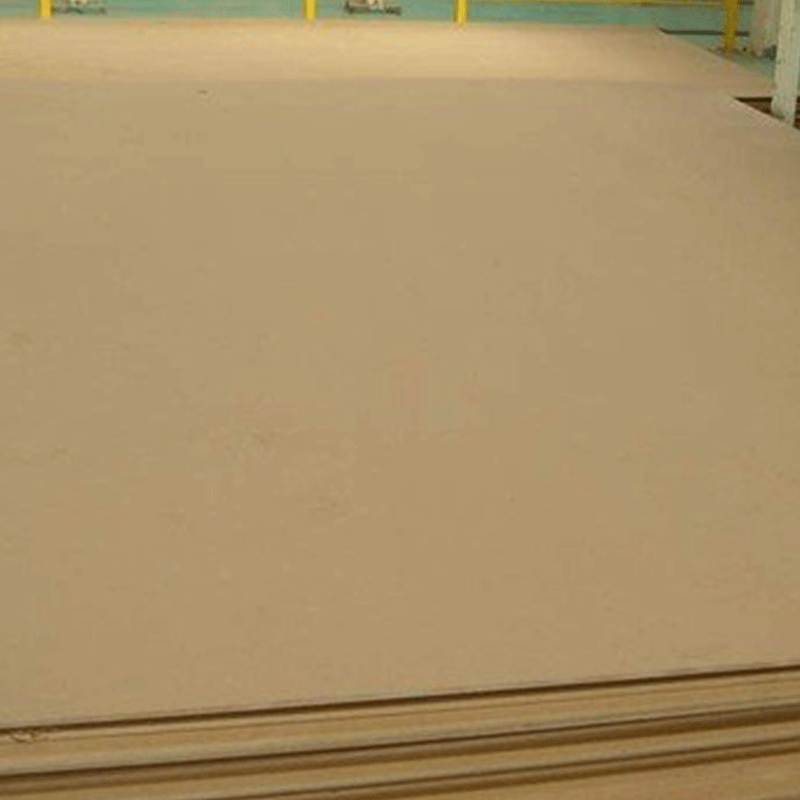

Floors

Intermediate floor

18mm concrete floor

Floor on both sides

18mm bamboo glueboard

Insulated walls

sidewall

75mm sandwich panel, color rolled double-sided 0.35 (core material rock wool, EPS, optional)
Standard sandwich material is 12kg/m³EPS

stand between

50mm sandwich panel, color steel plate substrate 0.35 on both sides. heat preservation material same as above↑

Main and side roofs

50mm sandwich panel, color steel plate substrate 0.35 on both sides. heat preservation material same as above↑

Electrical systems

parameters

1, Standard with national standard wires; 6² for incoming wires, 4² for air-conditioning outlets, 2.5² for general outlets, 1.5² for lighting.
(Can be customized according to the country to meet the certification requirements circuit)
2, Circuit breaker system; 1 2P63A main switch, 1 2P43A/2P32A/1P20 split leakage protector each.
3, lighting; three-proof LED ceiling lights * 6.
4, Socket; standard international three-hole socket (can be configured according to customer requirements socket standard)

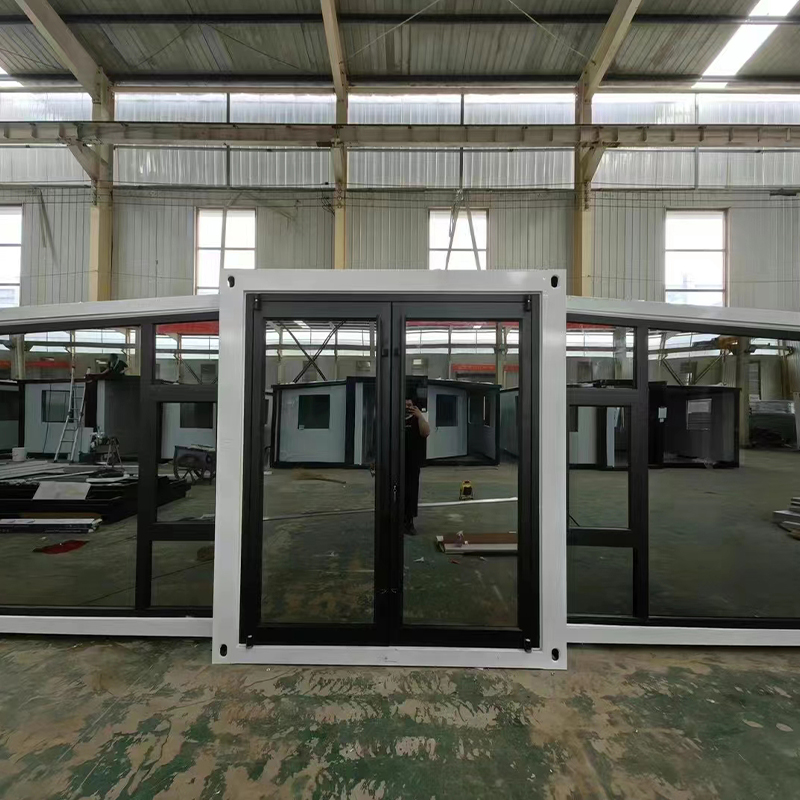

Door and window systems

entrance door

Standard steel security door (can be customized broken bridge aluminum, titanium magnesium alloy, aluminum alloy entry door)

window

Standard plastic steel double-glazed casement windows (can be customized high-end broken bridge aluminum windows, aluminum alloy windows) 930 * 930 * 4; 500 * 500 * 1
